Canon XA20 Professional Flash Memory HD Camcorder | Review

February 11, 2015 by
Filed under Digital Camcorders

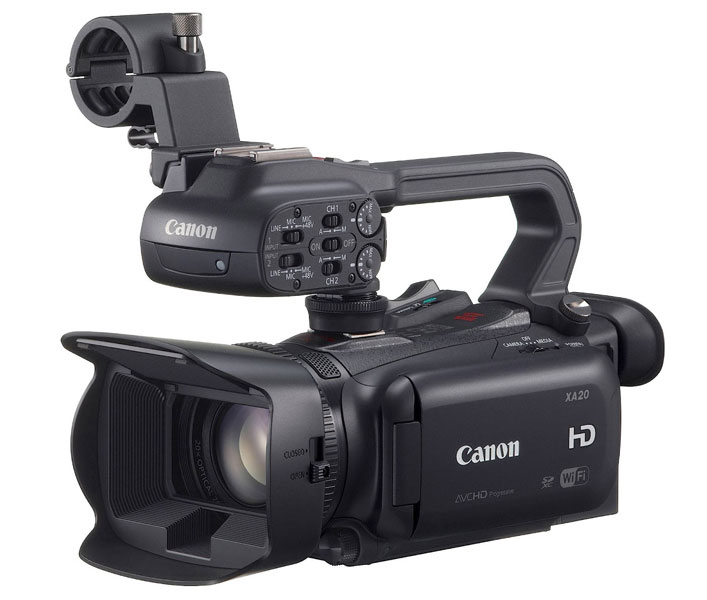

Canon XA20 Professional Flash Memory Camcorder

Canon XA20 Professional Flash Memory Camcorder

Rated 4 1/2 Stars

(Click for Reviews)


Is this the best price?

The Canon Professional XA20 is Canon’s top flash memory based camcorder. Compact in size. Records in full 1920 x 1080 Full HD (1080p). Records to SDHC/SDXC memory cards (camcorder has two memory card slots). Relay Recording allows the camcorder to automatically switch video recording to the next available SDHC/SDXC memory card when one card is full. You can also record simultaneoulsy to both cards as a safety backup. The upgraded 20x zoom HD Video Lens delivers excellent image quality and has SuperRange optical image stabilization (to keep video sharp in low light, or when holding the camcorder without a tripod). Included lens hood. Even at 20x, it maintains a light gathering F2.8. The XA20 has a large 3.5-inch high resolution OLED touchscreen. External Microphone Terminal with Manual Audio Level Control, Headphone Terminal, New upgraded Digital DV 4 image processor. Included are advanced features such as Canon’s Native 1920 x 1080 CMOS Image Sensor (better for low light) and provides a wide dynamic range, AVCHD H.264, and has a true 24p Cinema mode. (native 24p). External Microphone Jack for better sound options. The XA20 records at up to 35mbps. At the maximum AVCHD quality , you can record about 5 hours and 55 minutes to a 64GB SDHC or SDXC memory card. More recording time is also available if you use both memory card slots. Canon’s Instant AF focusing system greatly enhances auto focus speed and accuracy and decreases the time to lock in focus (even in low light).


Full HDProfessional Features: include a dedicated manual focus ring for precise focusing, 8-blade Iris (which captures smooth out-of-focus ‘bokeh’ ), Edge Monitor Focus Assist System– green waveform shows overall focus of image, and Detachable Handle – to give expanded audio performance and added flexibility. Two built-in XLR audio input terminals with phantom power provide sound inputs, cold accessory shoe, external microphone holder, manual audio level controller, infrared light (to allow the capture of video in complete darkness). Without the need to add lights, the shooter may remain hidden from their subjects. Waveform monitor shows a detailed view of overall image brightness. Enhanced zebra pattern indicates “blown out” areas. Full manual exposure, including aperture priority (Av) and shutter priority (Tv) modes. White balance control, Gain control, cinema look filters.


Upgraded Features from the XA10: Upgrades include, a larger 1/2.84-inch CMOS Pro Imager, upgrades to a 3.5-inch OLED Touch Panel with 1.23 million pixels, Adds MP4 recording up to 35mbps, Adds 60p (60fps) progressive mode, New lens doubles the zoom to 20x optical zoom up from 10x. EVF viewfinder upgrades from from 260,000 pixels to 1.56 million pixels. Wide angle improves from 30.4mm to 26.8mm. Upgrades to the Digital DV 4 image processor. The XA20 features built-in WiFi® technology, enabling FTP file transfer, and the ability to control the camcorder from a remote location. Added Built-in Wifi to wirelessly transfer files or control the camcorder remotely.


Additional Features: This model has an HDMI Mini Connector (output) for best quality when hooking this camcorder directly to an HDTV. Accessory cold shoe to add an external light or microphone. Features a large 3.5 inch OLED screen (with 1,230,000 pixels). Also included is a 0.24-inch color viewfinder (1,560,000 pixels). Remote Control Terminal (compatible with LANC protocol). Dolby Digital 2 channel (AC-3) stereo sound (Linear PCM), or 5.1-channel (with optional Canon SM-V1 microphone).


Canon XA20 Dimensions: 4.3″ x 3.3″ x 7.2″ (body) (1.7 pounds w/ battery).
Camcorder HD Recording Modes: 60i, 60p, PF30 Frame Rate(30p), PF24 Frame Rate (24p), Native 24p Frame Rate ( matches the frame rate of film).
Camcorder 20x Zoom Lens: 35mm equivalent: 26.8-576mm f/1.8-2.8 (20mm minimum focusing distance)
Zoom Speed: Variable, Constant: Fast, Normal, Slow (16 steps in each mode)
XA20 Imaging Sensor: 1/2.84-inch CMOS, Minimum 1.2 Lux illumination
HD/SD-SDI Uncompressed Output: 1920 x 1080 resolution with 4:2:2 color sampling and embedded audio and time code


Smart-Review Commentary: The XA20 is Canon’s upgraded professional flash memory camcorder. This model has extensive upgrades from the XA10 that it replaces. The new Built-in WiFi® technology allows you to control your camcorder remotely, or transfer video wirelessly. The Canon XA20 can use its dual SDHC/SDXC memory slots to record video, with the new 35mbps recording mode. The Canon XA20 has added a 60p mode (60 frames per second) to the recording options for smoother video. The lens on this camcorder offers a wider 26.8mm field of view, and has doubled the zoom range to 20x, without sacrificing light gathering (it maintains F2.8 at the long end). The lens and the Native 1920 x 1080 CMOS Image Sensor result in better video performance and dynamic range. Full HD Recording. A new feature is the large 3.5-inch OLED touchscreen high resolution screen with higher contrast and viewing angles than an LCD screen. This camcorder is loaded with all of the most important manual features including dual XLR inputs, manual focus, gain control, manual aperture and shutter, waveform, and more. Five assignable buttons allow you to customize this camcorder to your needs. The built-in infrared light provides night vision where you can shoot video in total darkness. The Touch & Track system on this camcorder keeps focus and exposure on any subject, no matter where it moves. Great for sports. If you need uncompressed output HD/SD-SDI port, you can get the XA25 model (available below). The Canon XA20 is a Smart-Review Top Pick for Professional Camcorders.


Canon Pro XA20
Pro Camcorder
Canon Pro XA20
Older Model
Canon Pro XA30
2016 Model
(Wide Dynamic Range)
Canon BP-828
Spare Battery
    Camcorder Features

  • Full HD Recording
  • 20x Optical Zoom
  • Manual controls
  • 2 XLR Terminals
  • True Native 24p, 60p mode
  • Built in Wifi
  • HDMI Terminal for HDTV
  • Dual SDHC Memory Card Slots
  • Optical Image Stabilization
  • Large 1/2.84 inch imager
  • Infrared Night Vision
  • High Resolution 3.5-inch OLED
